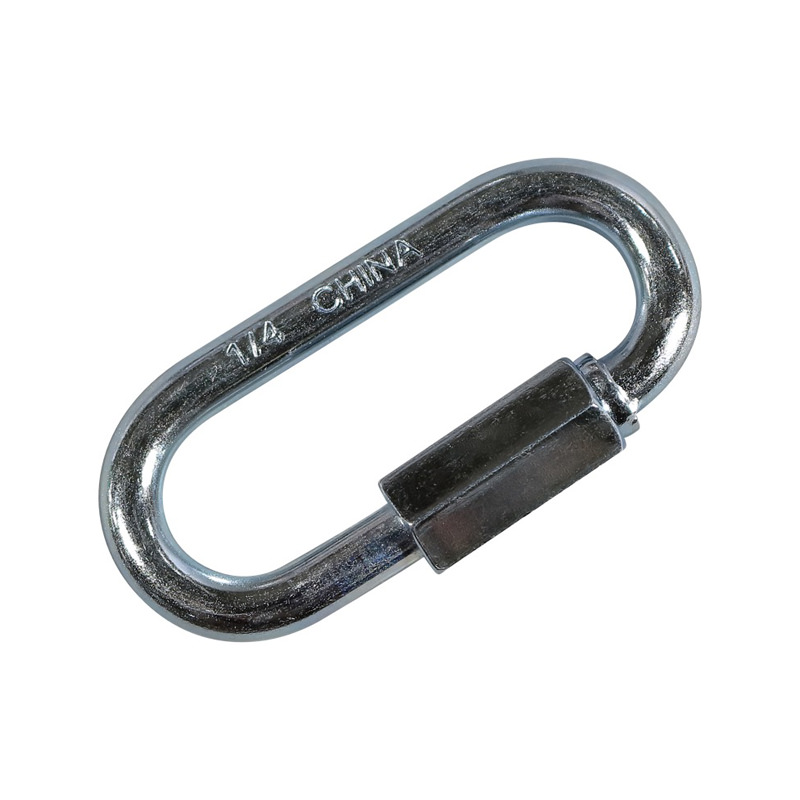

1/4″ Quick Link Bright Zinc EG
Multiprens 1/4″ Quick Link is a strong and reliable connection accessory, ideal for a wide range of general-purpose applications. Designed to be used with 3/16″ G30 Chain. Constructed from durable steel and finished with a bright zinc electro-galvanized (EG) coating, it offers enhanced corrosion resistance for indoor and outdoor use. The threaded hex nut enclosure ensures a secure reusable link for chain, rope, cables and other hardware. Not to be used for overheard lifting.
| Weight | 0.18 kgs / 0.40 lbs |
|---|---|
| WLL | 399 kgs / 880 lbs |
| Material | Low-carbon Steel |
| Color | Silver |
Provides a secure, semi-permanent connection point that opens and closes without tools.
Zinc EG finish provides corrosion resistance.
Screw-lock gate – must be hand-tightened fully before use.
Weight: 0.18 kgs/0.40 lbs
WLL: 399 kgs/880 lbs
Material: Low-carbon Steel
Color: Silver
Finish: Electrogalvanized (EG) for corrosion resistance in dry or mildly corrosive environments.
Diameter: 1/4″ (wire diameter)
Standard Skid Pack Quantity: 10
Unit Packaging: Individually
Standard Pack Unit Quantity: 1
Improper use of quick links can result in serious injury, death, or equipment failure. Always follow safety guidelines:
Inspect Before Use: Check for cracks, deformation, corrosion, or thread damage. Do not use if any part is worn or compromised.
Tighten Completely: Ensure the nut is fully closed and hand -tightened before applying any load. An open or partially closed link can fail under tension.
Use Within Rated Limits: Never exceed the Working Load Limit (WLL). EG quick links are not rated for dynamic or high-impact loads.
Not for Overhead Lifting: Quick links are not designed or rated for overhead lifting. Use only for non-critical connections.
Use Only with Compatible Hardware: Ensure the quick link is properly sized for the chain, rope, or fittings being used.
Not for Life-Safety Applications: Do not use for climbing, fall protection, or personal restraint systems.
Always follow manufacturer instructions and safety standards. Use responsibly to prevent accidents.
