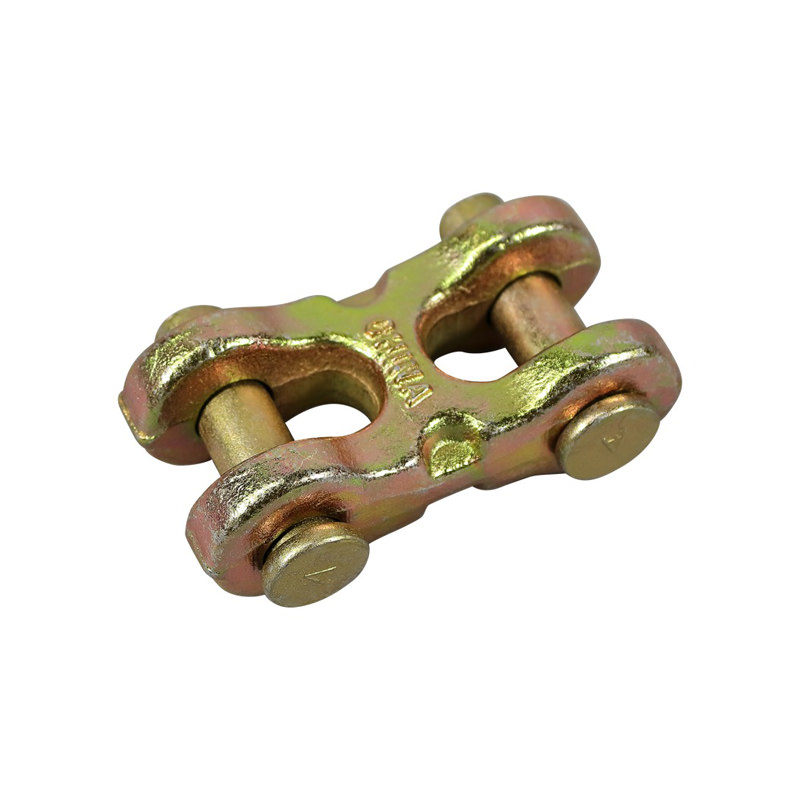

7/16″ – 1/2″ GR70 Double Clevis
Multiprens 7/16″ – 1/2″ Grade 70 Double Clevis Link is a heavy-duty connector designed for repairing or joining two lengths of either 7/16″ G70 or two lengths of 1/2″ Grade 70 transport chain with ease and reliability. Crafted from forged, heat-treated steel, this component features a zinc-plated finish for superior corrosion resistance. The dual-clevis design with removable pins allows for quick installation and secure chain-to-chain connections without compromising strength.
| Weight | 0.54 kgs / 1.20 lbs |
|---|---|
| WLL | 5,126 kgs / 11,300 lbs |
| Material | Steel |
| Color | Gold |
Used to join two lengths of chain or attach to fittings without splicing.
Strong and secure connection.
Field-serviceable with standard tools.
Designed for use with Grade 70 transport chain.
Not for use with Grade 80 or Grade 100 Chain
Weight: 0.54 kgs/1.20 lbs
WLL: 5,126 kgs/11,300 lbs
Material: Steel
Color: Gold
Finish: Zinc Plated
Standard Skid Pack Quantity:
Unit Packaging: Individually
Standard Pack Unit Quantity: 1
Not for Overhead Lifting – This product is not rated for lifting or hoisting applications. Use only for tie-down and load securement purposes.
Use with Grade 70 Chain Only – Mismatching chain grades or sizes can cause failure. Always ensure both clevis ends are used with the correct Grade 70 transport chain.
Do Not Exceed Working Load Limit (WLL) – Exceeding the rated capacity may result in equipment failure, serious injury, or death. Refer to size specific WLL ratings and follow industry standards.
Inspect Before Each Use – Check for wear, deformation, cracks, rust, or damaged pins. Replace immediately if any defects are founds.
Secure Pins with Cotter Pins -Always install and secure cotter pins after inserting clevis pins. Loose or missing pins can lead to load detachment.
Avoid Shock Loading – Sudden or impact loading can exceed WLL and cause failure. Apply force gradually and evenly.
Proper Training Required – This equipment should be used only by trained individuals familiar with safe rigging and tie-down procedures.
Complies with DOT, NACM and ASTM standards
